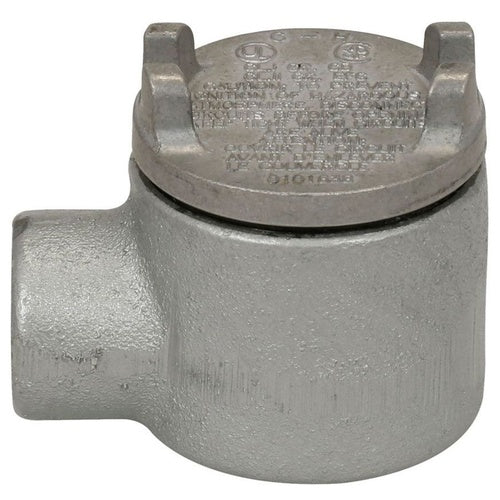

Crouse-Hinds GUA24 3/4" Gua Conduit Body & Cover

Overview

Crouse-Hinds GUA24 3/4" Gua Conduit Body & Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET GUA CONDUIT OUTLET BOX WITH COVER, 2" COVER OPENING DIAMETER, FERALOY IRON ALLOY, 3/4"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Material; Round Shape; 3/4 Inch Hub Size; 1 Hub(S); UL 1203, CSA C22.2 Approval; (4) Pad Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; C Style; Dead End Hub Location; External Hub Type; 2 Inch Cover Opening Diameter; CONDULET[R] Brand; Applicable Standard ANSI C33.27, CEC, NEC, Nema/Eemac 3, 4; Application Wet Location; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight; Cover Material Natural Finished Copper Free Aluminum; Includes Neoprene O-ring; GUA Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 782274460406
• SKU Name: crsh gua24

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
