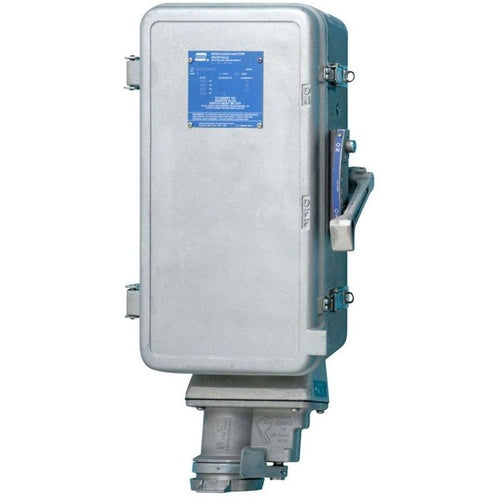

Crouse-Hinds WSR103541 600V-100A Switch

Overview

Crouse-Hinds WSR103541 600V-100A Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE WSR INTERLOCKED RECEPTACLE WITH ENCLOSED DISCONNECT SWITCH, 100A, 3-WIRE, 3-POLE, BRASS CONTACTS, SOLID DOOR, NON-FUSED, STYLE 1, 30 HP/60 HP/75 HP, COPPER-FREE ALUM, SPRING DOOR, 1-1/2", 240-600 VAC
• Full Technical Description: Mechanically Interlocked Type; Natural Finished Copper Free Aluminum Enclosure Material; 3 Wire(S); 240/600 VAC, 250 VDC Voltage Rating; NEMA 3R/4/12 Enclosure; 100 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Raintight, Watertight; 1-1/2 Inch Hub Type; Non-Fusible Fuse Provision; Hinged Spring Door, Gasketed; 1, Shell Grounding Style; ARKTITE[R] Brand; Approval UL 98, CUL C22.2; Power Rating 30 HP at 240 VAC, 60 HP at 480 VAC, 75 HP at 600 VAC; Material Fiberglass-Reinforced Polyester (Insulation), Brass (Pressure Contacts), Leaded Red Brass (Crimp/Solder Contacts), Copper Free Aluminum (Operating Handle), Stainless Steel (Other Exterior Part); Size 14-7/8 Inch W X 8-1/4 Inch D X 35-3/8 Inch H; WSR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274019758
• SKU Name: crsh wsr103541

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
