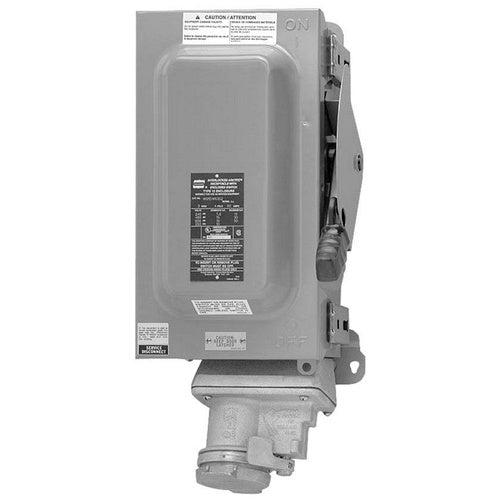

Crouse-Hinds WSRD3351 Interlock Receptacle/Disconnect Switch

Overview

Crouse-Hinds WSRD3351 Interlock Receptacle/Disconnect Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE WSRD INTERLOCKED RECEPTACLE WITH ENCLOSED DISCONNECT SWITCH, 30A, THREE-WIRE, THREE-POLE, BRASS CONTACTS, SOLID DOOR, FUSED, STYLE 1, 15 HP/20 HP, COPPER-FREE ALUMINUM, SPRING DOOR, 1", 480/600 VAC
• Full Technical Description: Mechanically Interlocked Type; Baked Gray Enamel Sheet Steel Enclosure, Copper Free Aluminum Receptacle Housing Material; 3 Wire(S); 600 Vac/250 VDC Voltage Rating; NEMA 3R/12 Enclosure; 30 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dust Tight, Moisture Resistant, Rain Tight, Water Tight; 1 Inch Hub Type; Class H, Fusible Fuse Provision; Spring Door; 1, Shell Grounding Style; Crouse-Hinds. Brand; Application Compressor, Generator, Welder; Approval UL 98; WSRD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Receptacle With Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274974255
• SKU Name: crsh wsrd3351

Resources

• Manufacturer Spec Sheet
