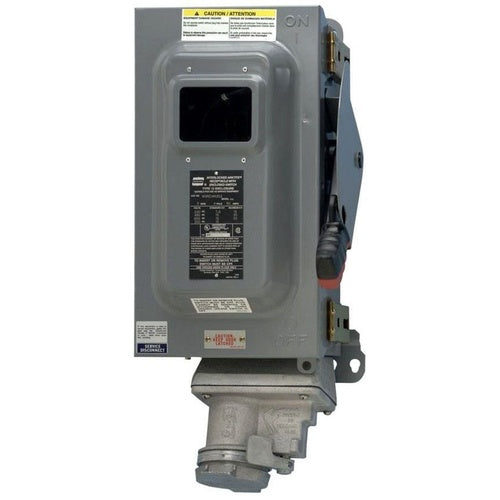

Crouse-Hinds WSRDW10352 Receptacle & Switch

Overview

Crouse-Hinds WSRDW10352 Receptacle & Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE WSRD INTERLOCKED RECEPTACLE WITH ENCLOSED DISCONNECT SWITCH, 100A, THREE-WIRE, FOUR-POLE, BRASS CONTACTS, WINDOWED DOOR, FUSED, STYLE 2, 60 HP/75 HP, COPPER-FREE ALUMINUM, SPRING DOOR, 1-1/2", 480/600 VAC
• Full Technical Description: Mechanically Interlocked Type; Baked Gray Enamel Steel Enclosure Material; 3 Wire(S); 600 VAC, 250 VDC Voltage Rating; NEMA 3R/12 Enclosure; 100 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Rain Tight, Water Tight; 1-1/2 Inch Hub Type; Class H, Fusible Fuse Provision; Hinged Spring Door, Gasketed; 2, Shell, Extra Pole Grounding Style; Crouse-Hinds. Brand; Approval UL 98; WSRD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Receptacle With Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274066493
• SKU Name: crsh wsrdw10352

Resources

• Manufacturer Spec Sheet
