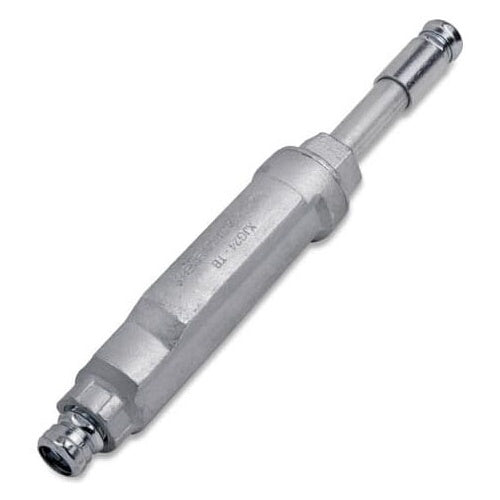

Crouse-Hinds XJG54-EMT Emt Conduit Expansion Joint

Overview

Crouse-Hinds XJG54-EMT Emt Conduit Expansion Joint

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES XJG EMT EXPANSION COUPLING, STEEL, 4" MAXIMUM CONDUIT MOVEMENT, 1-1/2" TRADE SIZE
• Full Technical Description: Thermal Expansion/Contraction Type; Electrogalvanized Steel Body/Washer, Electrogalvanized Aluminum Painted Feraloy Iron Alloy Bushing/Reducer, Black Painted Steel Gland Nut, Electrogalvanized Phosphor Bronze Ground Spring, PTFE Packing, Vellum Gasket Material; 15-1/2 Inch; EMT Conduit Used on; 4 Inch Max. Movement; UL 514B, CSA C22.2 Approval; 3-5/8 Inch Diameter; Internally Grounded Tinned Copper Braid; 1-1/2 Inch Trade Size; Weatherproof; Applicable Standard NEMA FB1; Application Wet Location; XJG-EMT Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39121311
• UPC 12 Digit: 782274122557
• SKU Name: crsh xjg54emt

Resources

• Manufacturer Spec Sheet
