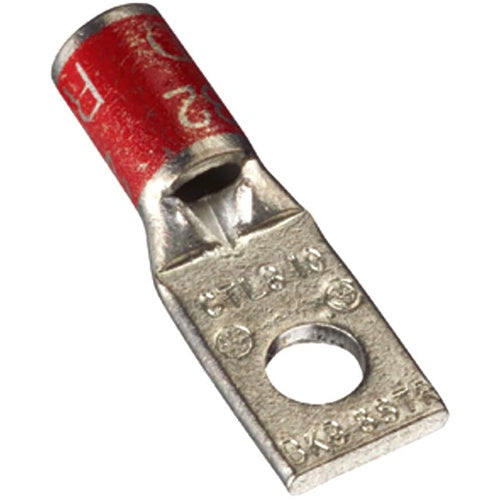

Blackburn CTL10-38 Copper Test Point 1-Hole Lug Short Barrel 1/0 3/8B Pink

Overview

Blackburn CTL10-38 Copper Test Point 1-Hole Lug Short Barrel 1/0 3/8B Pink

Product Specifications

• UPC: 78378613183
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Pink
• Material: Tin Plated Seamless Copper
• Overall Length: 1-7/8 Inch
• Approval: UL, CSA
• Catalog Number: CTL10-38
• Model: CTL
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 11/16 Inch
• Pad Size: 29/32 Inch Length x 3/4 Inch Width x 1/8 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, SHORT BARREL, MAX 35KV, 1/0 STR. WIRE, 3/8 BOLT SIZE, TIN PLATED, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Pink Color; 1-7/8 Inch Overall Length; 11/16 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 1/0 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 29/32 Inch Length X 3/4 Inch Width X 1/8 Inch Thickness Pad Size; 1 Pad Hole(S); Short, Standard, Straight Barrel Type; CTL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786131839
• SKU Name: ctl1038 blackburn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
