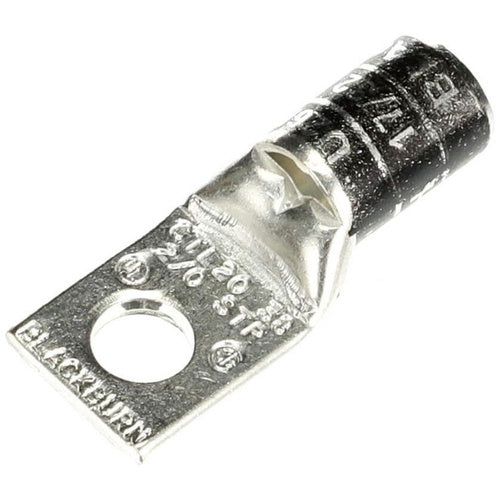

Blackburn CTL20-38 Copper Test Point 1-Hole Lug Short Barrel 2/0 3/8B Black

Overview

Blackburn CTL20-38 Copper Test Point 1-Hole Lug Short Barrel 2/0 3/8B Black

Product Specifications

• UPC: 78378613184
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Black
• Die Index: 45, 106
• Material: Tin Plated Seamless Copper
• Overall Length: 2-1/32 Inch
• Approval: UL, CSA
• Catalog Number: CTL20-38
• Model: CTL
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 2/0 AWG Stranded
• Barrel Type: Short
• Barrel Length: 13/16 Inch
• Pad Size: 29/32 Inch L x 13/16 Inch W x 1/8 Inch Thk
• Catalog Description: COPPER ONE-HOLE LUG, SHORT BARREL, MAX 35KV, 2/0 STR. WIRE, 3/8 BOLT SIZE, TIN PLATED, DIE COLOR CODE BLACK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Black Color; 2-1/32 Inch Overall Length; 13/16 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 2/0 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 45, 106 Die Index; 29/32 Inch L X 13/16 Inch W X 1/8 Inch Thk Pad Size; 1 Pad Hole(S); Short Barrel Type; CTL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786131846
• SKU Name: ctl2038 blackburn
