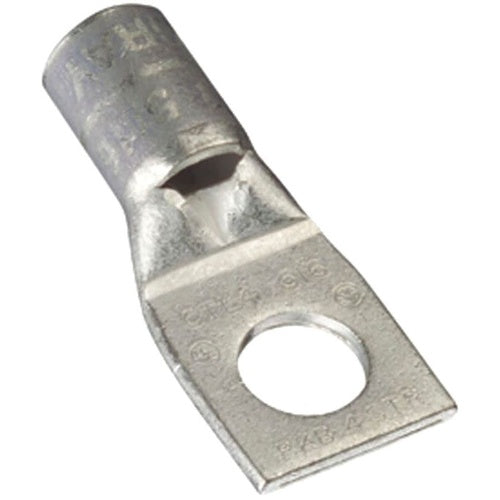

Blackburn CTL414 4Str Copper Compression Lug

Overview

Blackburn CTL414 4Str Copper Compression Lug

Product Specifications

• UPC: 78378613173
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: 29
• Material: Tin Plated Seamless Copper
• Overall Length: 1-3/8 Inch
• Approval: UL, CSA
• Catalog Number: CTL414
• Model: CTL
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4 AWG Stranded
• Barrel Type: Short, Straight
• Barrel Length: 1/2 Inch
• Pad Size: 19/32 Inch L x 17/32 Inch W x 3/32 Inch Thk
• Catalog Description: COPPER ONE-HOLE LUG, SHORT BARREL, MAX 35KV, 4 STR. WIRE, 1/4 BOLT SIZE, TIN PLATED, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Gray Color; 1-3/8 Inch Overall Length; 1/2 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 4 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 19/32 Inch L X 17/32 Inch W X 3/32 Inch Thk Pad Size; 1 Pad Hole(S); Short, Straight Barrel Type; CTL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786131730
• SKU Name: ctl414 blackburn
