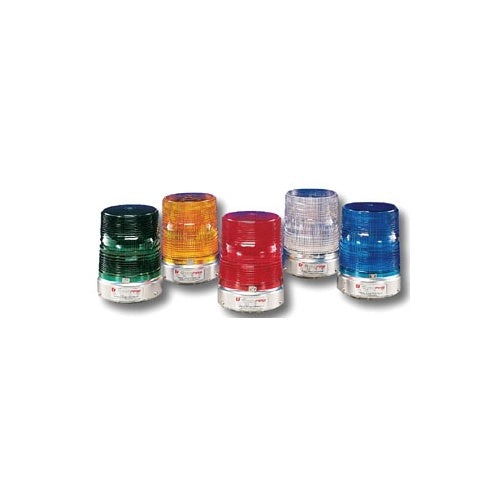

Federal-Signal 131ST-120A Strobe, 120VAC, Pipe Mount, Amber

Overview

Federal-Signal 131ST-120A Strobe, 120VAC, Pipe Mount, Amber

Product Specifications

• Application: Commercial Trucking
• Model: 131ST
• Mounting: 1/2-Inch NPT Pipe
• Nema Rating: Type 3R Enclosure (Dome Up Orientation)
• Shape: Cylindrical
• Size: 7.75 H x 5.7 W x 5.7 D IN
• Special Features: Single Or Double Flash Models
• Standard: UL Listed/cUL Listed
• Style: Strobe
• Sub Brand: Starfire
• Type: Strobe Warning Light
• Average Life: 10,000 HR
• Voltage Rating: 120 to 240@50/60Hz VAC
• Light Source: Strobe Tube
• Brand Name: Federal Signal
• Candle Power: 2M cd
• Color: Amber
• Environmental Conditions: -31 to 150
• Fixture Type: Corner Bracket/Wall Bracket
• Flashes Per Minute: 80 FLPM
• Material: Aluminum/Polycarbonate
• Catalog Description: STARFIRE STROBE LIGHT, UL AND CUL, 120VAC, AMBER
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Strobe Light, Single Flash Type; Anodized Aluminum (Base) Material; 5.7 Inch Diameter X 7.75 Inch Height Size; UL, CUL, CSA Approval; 120 Volt AC 50/60 Hertz Operating Voltage; Indoor/Outdoor, in-Plant, Warn of Hazardous Conditions, Mark Dangerous Area, Mount on Lift Truck, Crane and Other Moving Device Application; 1/2 Inch Threaded Pipe Mounting; NEMA 3R Enclosure; 0.6 Amp Operating Current; Amber Lens Color; 80 FPM Flash Rate; 2000000 Candela (Peak), 1000 Candela (Ecp) Light Intensity; Lamp Life 10000 Hour; Light Source Strobe Tube; Temperature Rating -31 to 150 Deg F; 131ST Model
• Made In Usa: Yes
• Manufacturer: FEDERAL SIGNAL CORP.
• Manufacturer Brand: Federal Signal
• Sub Category: Strobe/Flashing Light Unit
• Unspsc: 39111706
• UPC 12 Digit: 782979285700
• SKU Name: fedsig 131st120a

Resources

• Manufacturer Spec Sheet
