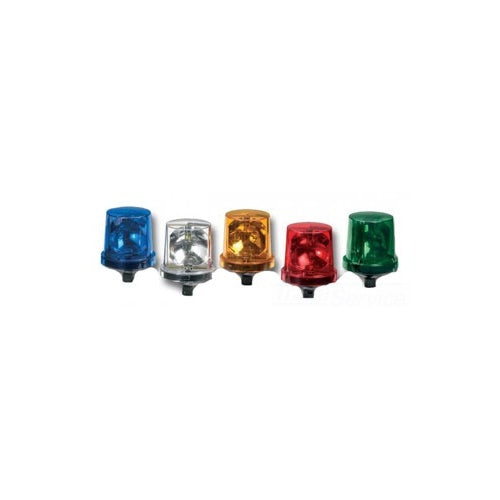

Federal-Signal 225X-120A Rotating Light, 120VAC, Hazardous Location, Amber

Overview

Federal-Signal 225X-120A Rotating Light, 120VAC, Hazardous Location, Amber

Product Specifications

• Application: Indoor/Outdoor
• Mounting: 1/2-Inch NPT Pipe
• Nema Rating: Type 4X, IP66, IP69K Enclosure
• Shape: Cylindrical
• Size: 7.5 H x 5.5 W x 5.5 D IN
• Special Features: Hazardous Location
• Standard: UL Listed/cUL Listed
• Style: Rotating
• Sub Brand: Electraray
• Type: Hazardous Location Rotating Warning Light
• Voltage Rating: 120 to 240@50/60Hz VAC
• Average Life: 1,000 HR
• Wattage: 25 W
• Light Source: Incandescent
• Brand Name: Federal Signal
• Candle Power: 1,000 cd
• Color: Amber
• Environmental Conditions: -40 to 104
• Flashes Per Minute: 90 FLPM
• Material: Zinc/Polycarbonate
• Model: 225X
• Catalog Description: ELECTRARAY INCANDESCENT ROTATING LIGHT, HAZARDOUS LOCATION, UL AND CUL CID2, 120VAC, AMBER
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Rotating Light Type; Polycarbonate Dome, Silicone Rubber Gasket Material; 5-1/2 Inch Dia X 7-1/2 Inch H Size; UL, CSA Approval; 120 VAC at 50/60 Hz Operating Voltage; Hazardous Location, Indoor/Outdoor Application; 1/2 Inch Pipe Mounting; NEMA 4X, IP65 Enclosure; 25 W Incandescent Lamp Type; 0.22 Ampere Operating Current; Amber Lens Color; 90 FPM Flash Rate; 1000 CP Light Intensity; ELECTRARAY[R] Brand; Injection Molded Reflector; Lamp Life 200 HR; Operating Temperature -31 to 150 Deg F; With Black Poly Coated Base, Parabolic Mirror; 225X Model
• Made In Usa: Yes
• Manufacturer: FEDERAL SIGNAL CORP.
• Manufacturer Brand: Federal Signal
• Sub Category: Strobe/Flashing Light Unit
• Unspsc: 39111706
• UPC 12 Digit: 782979390282
• SKU Name: fedsig 225x120a

Resources

• Manufacturer Spec Sheet
