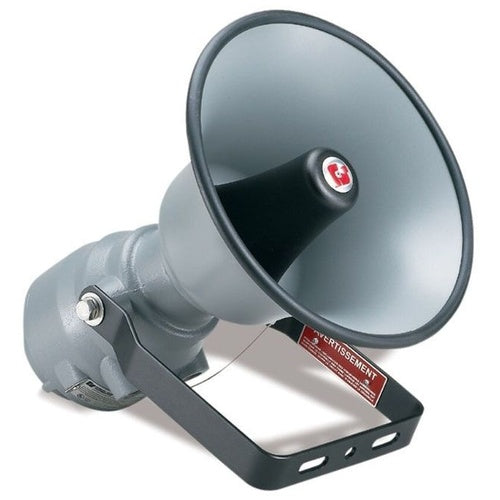

Federal-Signal 300X-024 Selectone Speaker/Amplifier, Explosion-Proof, 15 Watt, 24VAC/DC, Gain Control

Overview

Federal-Signal 300X-024 Selectone Speaker/Amplifier, Explosion-Proof, 15 Watt, 24VAC/DC, Gain Control

Product Specifications

• Brand Name: Federal Signal
• Operating Voltage: 24VDC/24VAC 50-60Hz
• Special Features: Digital Signal Amplification
• Standard: UL Listed/cUL Listed/CSFM Approved
• Sub Brand: SelecTone
• Termination: Terminal Block
• Type: Explosion-Proof Amplified Speaker
• Enclosure: Type 4X, IP66
• Cable Entry Size: 1/2-Inch NPT
• Color: Gray
• Dimensions: 17.0 H x 13.1 W x 16.3 D IN
• Loudness: 0 to 110 DB
• Material: Die-Cast Aluminum
• Mounting: Surface
• Operating Current: 0.76@24VDC/1.10@24VAC A
• Operating Temperature: -67 to 151 DEG F
• Catalog Description: SELECTONE 15W AMPLIFIED SPEAKER, EXPLOSION-PROOF, UL AND CUL CID1, 24VAC/DC, GRAY
• Category: Sound & Audio Systems
• Full Technical Description: Approval CSA, UL; Color Gray; Enclosure NEMA 3R, IP44; Frequency Rating 50/60 Hz; Material Die Cast Aluminum; Maximum AC Voltage Rating 24; Maximum AC Voltage Rating - Uom V; Maximum Current Rating 1.3; Maximum Current Rating - Uom A; Maximum DC Voltage Rating 24; Maximum DC Voltage Rating - Uom V; Minimum AC Voltage Rating 24; Minimum AC Voltage Rating - Uom V; Minimum Current Rating .5; Minimum Current Rating - Uom A; Minimum DC Voltage Rating 24; Minimum DC Voltage Rating - Uom V; Size 8.88 Inch W X 14.75 Inch D X 14.75 Inch H; Sound Intensity 114 dB; Selectone. Brand; 300X Model; Built in Gain Control; Explosion Proof
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Electronic Horn
• Unspsc: 46171602
• UPC 12 Digit: 782979200604
• SKU Name: fedsig 300x024

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
