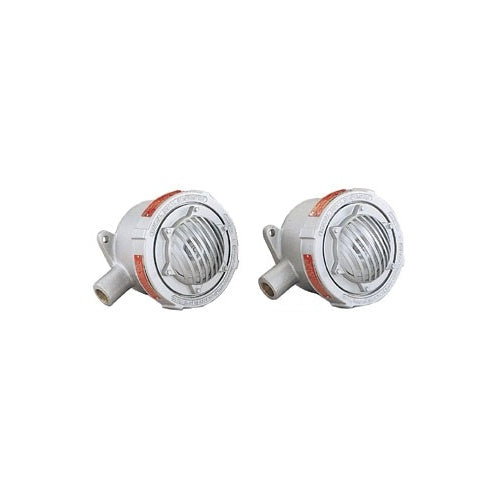

Federal-Signal 41X-024-1 Horn, 24VDC, Explosion-Proof

Overview

Federal-Signal 41X-024-1 Horn, 24VDC, Explosion-Proof

Product Specifications

• Brand Name: Federal Signal
• Special Features: Five Minute Duty Cycle
• Standard: UL Listed/cUL Listed/CSA Certified
• Sub Brand: Vibratone
• Type: Explosion-Proof Vibrating Horn
• Color: Gray
• Dimensions: 7.625 H x 6.5 W x 6.5 D
• Loudness: 100 DB
• Material: Corrosion-Resistant Cast Aluminum Housing
• Mounting: Pipe/Surface
• Operating Current: 1.2 A
• Operating Temperature: -13 to 104 DEG F
• Operating Voltage: 24VDC
• Catalog Description: VIBRATING HORN, EXPLOSION-PROOF, UL AND CUL CID1, 24VDC, CORROSION-RESISTANT HOUSING
• Category: Bells,Horns,Sirens,Buzzers,Strobes
• Full Technical Description: Vibrating Horn With Grill Type; 6.5 Inch W X 6.5 Inch D X 7.625 Inch H Size; UL, CUL, CSA Approval; Hazardous Location Application; 24 VDC Voltage Rating; 3/4 Inch Pipe Mounting; Class I Div 1 Group C D, Class II Div 1 Group E F G, Class III Enclosure; 1.2 Ampere Current Rating; Corrosion Resistant Cast Aluminum Housing Material; 99 dB at 10 ft, 110 dB at 1 Meter Sound Intensity; 3/4 Inch Threaded Conduit Tapping Size; Operating Temperature -31 to 150 Deg F; Duty Cycle 5 min On/Off; Diaphragm Material Stainless Steel
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Horn
• Unspsc: 46171602
• UPC 12 Digit: 782979227007
• SKU Name: fedsig 41x0241

Resources

• Manufacturer Spec Sheet
