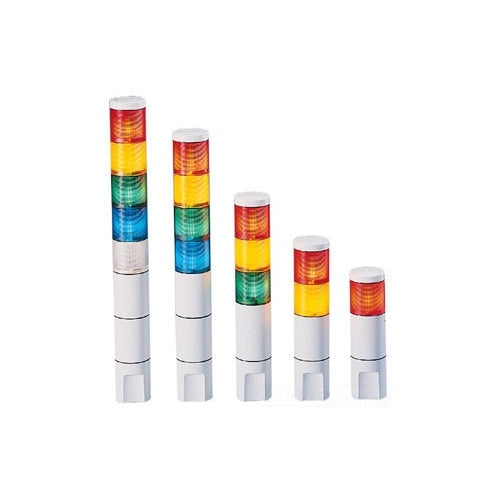

Federal-Signal MSL1-120R Microstat, 1-High, 120VAC, Red

Overview

Federal-Signal MSL1-120R Microstat, 1-High, 120VAC, Red

Product Specifications

• Application: Indoor
• Special Features: Optional Sound Module Model MSS
• Standard: UL Listed/cUL Listed
• Sub Brand: MicroStat
• Type: Status Indicator
• Voltage Rating: 120 VAC
• Environmental Conditions: 32 to 104 DEG F
• Brand Name: Federal Signal
• Enclosure: Type 4X
• Lamp Life: 7,000 HR
• Lamp Type: Wedge
• Lens Color: Red
• Lens Material: Polycarbonate
• Mounting: 3/4-Inch NPT Pipe/Surface
• Size: 7.8 H x 2.2 W x 2.2 D IN
• Catalog Description: MICROSTAT INCANDESCENT STATUS INDICATOR, 1-HIGH, UL AND CUL, 120VAC, RED
• Category: Sound & Audio Systems
• Full Technical Description: 2.2 Inch Dia X 7.8 Inch H Size; UL, CSA Approval; 120 VAC Operating Voltage; 3/4 Inch NPT Pipe/Surface Mounting; NEMA 4X, IP65 Enclosure; LED Lamp Type; 0.2 Ampere Operating Current; Red Lens Color; No Audible Device Type; 1 Light Unit(S); MICROSTAT[T] Brand; Includes 5.6 Watt Wedge Lamp; Lamp Number 655; Operating Temperature -32 to 120 Deg F; PLC Compatible; MSL Model
• Made In Usa: Yes
• Manufacturer: Federal Signal Corporation
• Manufacturer Brand: Federal Signal
• Sub Category: Assembled Stack Light Unit
• Unspsc: 32151503
• UPC 12 Digit: 782979201748
• SKU Name: fedsig msl1120r

Resources

• Manufacturer Spec Sheet
