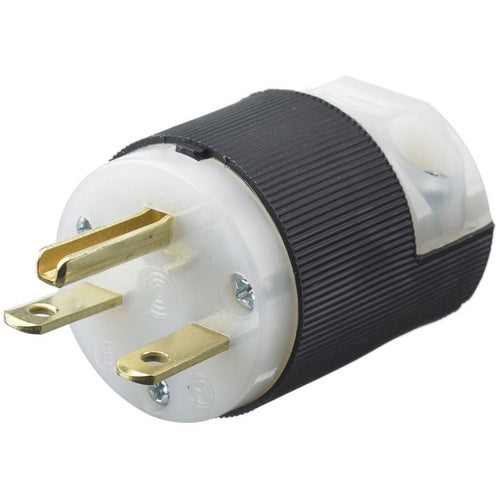

Hubbell HBL5666C Ground Plug Nema6-15P

Overview

Hubbell HBL5666C Ground Plug Nema6-15P

Product Specifications

• UPC: 78358517560
• Ground Type: Grounding
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Color: Black/White
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 1.5 HP; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard NEMA WD-6
• Catalog Number: HBL5666C
• Brand Name: Wiring Device-Kellems
• Constructional Feature: Impact/Chemical Resistant
• Configuration: 6-15P
• Voltage Rating: 250 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, INSULGRIP HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3- WIRE GROUNDING, 15A 250V, 6-15P, BLACK AND WHITE, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; 6-15P Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Insulgrip [R] Brand; Power Rating 1.5 HP; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard NEMA Wd-6
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585175607
• SKU Name: hubw hbl5666c
