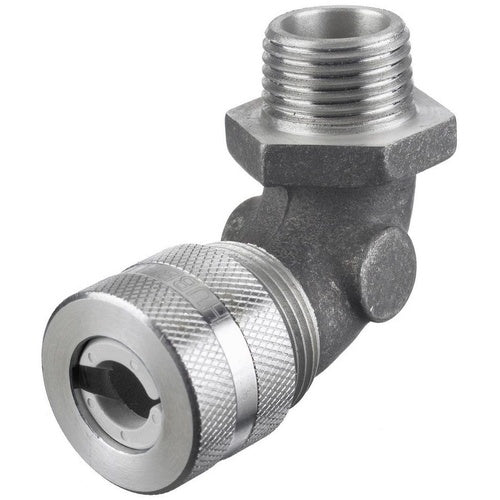

Hubbell NHC1022 90D Male Cord Connector, .25-.38", 1/2", Alum

Overview

Hubbell NHC1022 90D Male Cord Connector, .25-.38", 1/2", Alum

Product Specifications

• UPC: 78358520122
• Application: Hazardous Location
• Additional Information: Form Size F2; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: NHC1022
• Brand Name: Wiring Device-Kellems
• Type: 90 Degree Male
• Thread Size: 1/2 Inch Threaded
• Material: Machined Aluminum
• Cord Size: 0.25 to 0.38 Inch
• Size: 1.13 Inch Diameter x 2.11 Inch Length x 2.3 Inch Height
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, 90 DEGREE MALE .25-.38", 1/2", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: 90 Degree Male Type; Machined Aluminum Material; 1.13 Inch Diameter X 2.11 Inch Length X 2.3 Inch Height Size; UL 514B, CSA Approval; Hazardous Location Application; 1/2 Inch Threaded Thread Size; 0.25 to 0.38 Inch Cord Size; Form Size F2; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585201221
• SKU Name: hubw nhc1022

Resources

• Manufacturer Spec Sheet
