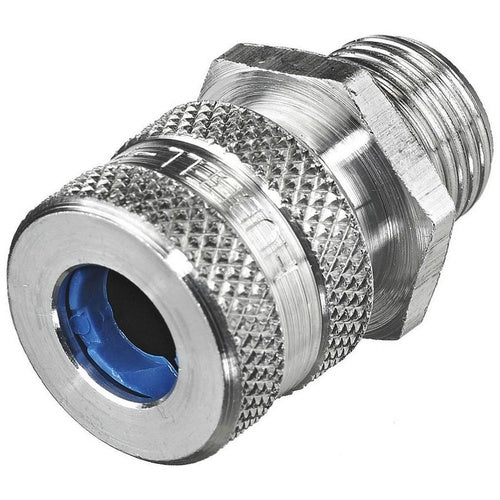

Hubbell SHC1012 Cord Connector, Straight Male, .38-.44", 3/8", Alum

Overview

Hubbell SHC1012 Cord Connector, Straight Male, .38-.44", 3/8", Alum

Product Specifications

• UPC: 78358520012
• Application: Hazardous Location
• Additional Information: Form Size F1; Color Code Blue; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1012
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 3/8 Inch Threaded
• Material: Machined Aluminum
• Cord Size: 0.38 to 0.44 Inch
• Size: 0.88 Inch Diameter x 1.36 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, .38-.44", 3/8", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Aluminum Material; 0.88 Inch Diameter X 1.36 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 3/8 Inch Threaded Thread Size; 0.38 to 0.44 Inch Cord Size; Form Size F1; Color Code Blue; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585200125
• SKU Name: hubw shc1012

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
