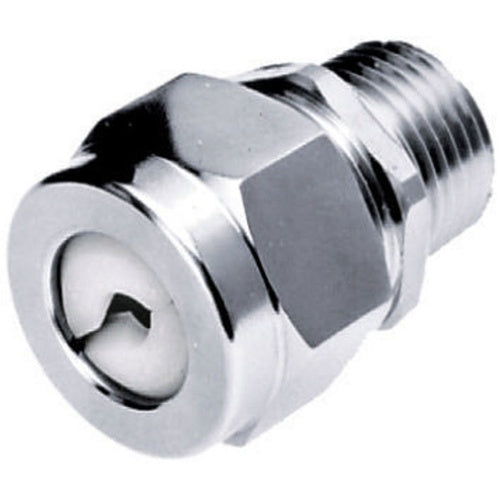

Hubbell SHC1022ZP Cord Connector Straight Male, .25-.38", 1/2", Steel

Overview

Hubbell SHC1022ZP Cord Connector Straight Male, .25-.38", 1/2", Steel

Product Specifications

• UPC: 78358521022
• Application: Hazardous Location
• Additional Information: Form Size F2; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1022ZP
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 1/2 Inch Threaded
• Material: Machined Zinc Plated Steel
• Cord Size: 0.25 to 0.38 Inch
• Size: 1.27 Inch Diameter x 1.75 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS STRAIGHT MALE CORD CONNECTOR, .25-.38", ", STEEL
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Zinc Plated Steel Material; 1.27 Inch Diameter X 1.75 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 1/2 Inch Threaded Thread Size; 0.25 to 0.38 Inch Cord Size; Form Size F2; Color Code White; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585210223
• SKU Name: hubw shc1022zp .250.375

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
