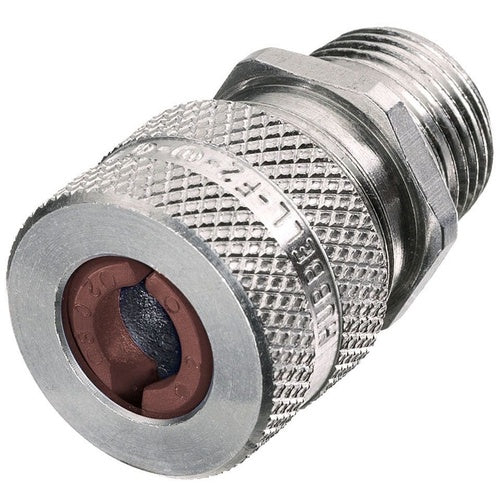

Hubbell SHC1024 Cord Connector, Straight Male, .50-.63", 1/2", Alum

Overview

Hubbell SHC1024 Cord Connector, Straight Male, .50-.63", 1/2", Alum

Product Specifications

• UPC: 78358520024
• Application: Hazardous Location
• Additional Information: Form Size F2; Color Code Brown; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1024
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 1/2 Inch Threaded
• Material: Machined Aluminum
• Cord Size: 0.5 to 0.63 Inch
• Size: 1.13 Inch Diameter x 1.65 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, .50-.63", 1/2", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Aluminum Material; 1.13 Inch Diameter X 1.65 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 1/2 Inch Threaded Thread Size; 0.5 to 0.63 Inch Cord Size; Form Size F2; Color Code Brown; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585200248
• SKU Name: hubw shc1024

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
