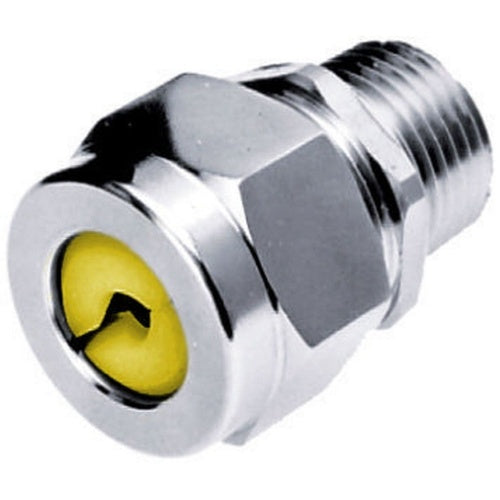

Hubbell SHC1037ZP Cord Connector, Straight Male, .63-.75", 3/4", Steel

Overview

Hubbell SHC1037ZP Cord Connector, Straight Male, .63-.75", 3/4", Steel

Product Specifications

• UPC: 78358549623
• Application: Hazardous Location
• Additional Information: Form Size F3; Color Code Yellow; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1037ZP
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 3/4 Inch Threaded
• Material: Machined Zinc Plated Steel
• Cord Size: 0.63 to 0.75 Inch
• Size: 1.55 Inch Diameter x 1.95 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS STRAIGHT MALE CORD CONNECTOR, .63"-.75", ", STEEL
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Machined Zinc Plated Steel Material; 1.55 Inch Diameter X 1.95 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 3/4 Inch Threaded Thread Size; 0.63 to 0.75 Inch Cord Size; Form Size F3; Color Code Yellow; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585496238
• SKU Name: hubw shc1037zp .625.750

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
