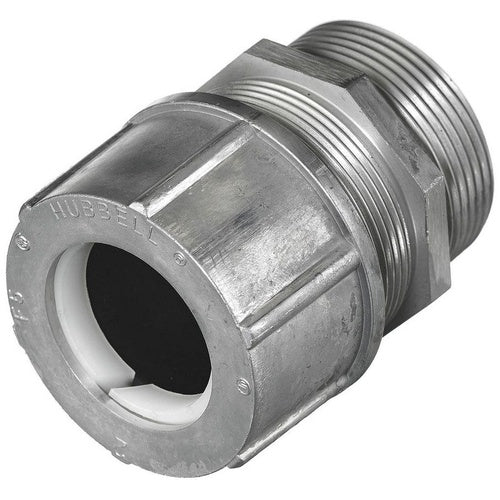

Hubbell SHC1047 Cord Connector, F-5,Straight Male, 1.00-1.13", 1", Alum

Overview

Hubbell SHC1047 Cord Connector, F-5,Straight Male, 1.00-1.13", 1", Alum

Product Specifications

• UPC: 78358520047
• Application: Hazardous Location
• Additional Information: Color White; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66
• Catalog Number: SHC1047
• Model: SHC
• Type: Straight Male
• Thread Size: 1 Inch NPT
• Material: Cast Aluminum
• Cord Size: 1 to 1.13 Inch
• Size: 2.31 Inch Dia x 2.36 Inch L
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, 1.00-1.13", 1", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Cast Aluminum Material; 2.31 Inch Dia X 2.36 Inch L Size; UL 514B, CSA Approval; Hazardous Location Application; 1 Inch NPT Thread Size; 1 to 1.13 Inch Cord Size; Color White; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66; SHC Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585200477
• SKU Name: hubw shc1047
