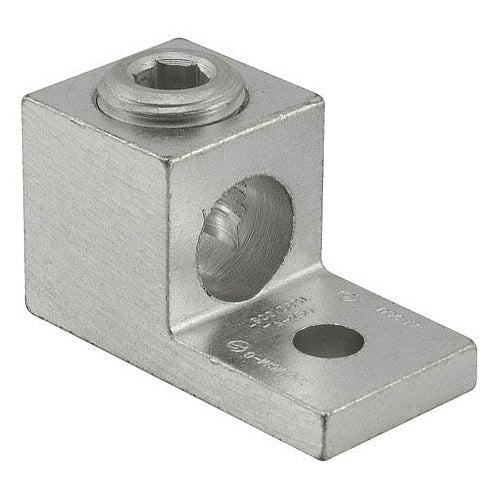

Ilsco TA-250 6-250mcm Aluminum/Copper Lug

Overview

Ilsco TA-250 6-250mcm Aluminum/Copper Lug

Product Specifications

• UPC: 78366988942
• Screw Type: 5/16 Inch Hex
• Material: Electro Tin Plated 6061-T6 Aluminum Alloy
• Number Of Pad Holes: 1
• Pad Size: 1 Inch Length x 1 Inch Width x 1/4 Inch Thickness
• Stud Size: 5/16 Inch
• Overall Length: 2 Inch
• Approval: UL 467/486A/B, CSA
• Additional Information: RoHS Compliant; Voltage Rating 35 Kilovolt; Height 1-21/64 Inch; Temperature Rating 90 Deg C
• Catalog Number: TA-250
• Model: TA
• Type: Chamfered Wire Entry
• Number Of Conductors: 1
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 250 KCMIL
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: ALUMINUM MECHANICAL LUG, CONDUCTOR RANGE 250-6, 1 PORT, 1 HOLE, 5/16IN BOLT SIZE, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Chamfered Wire Entry Type; Electro Tin Plated 6061-T6 Aluminum Alloy Material; 2 Inch Overall Length; 6 AWG min. Conductor Size; 250 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 467/486A/B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 1 Inch Length X 1 Inch Width X 1/4 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; 5/16 Inch Hex Screw Type; RoHS Compliant; Voltage Rating 35 Kilovolt; Height 1-21/64 Inch; Temperature Rating 90 Deg C; TA Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669889420
• SKU Name: ilsco ta250
