Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
Approval: UL, CSA
Additional Information: Overall Dimension 4-5/8 Inch W x 5-1/8 Inch H

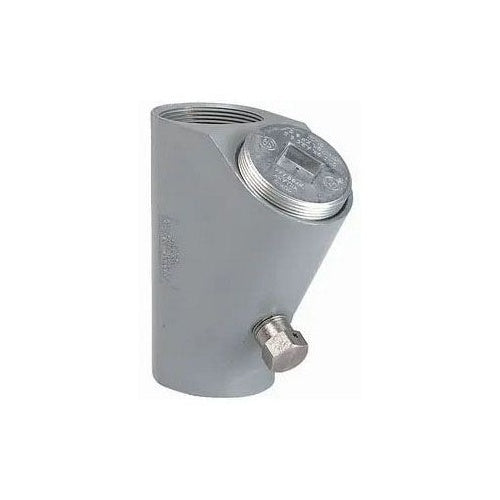

Catalog Number: EYD-5M
Model: EYD
Type: Drain, Hub
Turning Radius: 3-7/16 Inch
Trade Size: 1-1/2 Inch
Connection Type: Female Threaded, Female
Material: Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron
Mounting Position: Vertical
Catalog Description: KILLARKS EYD DRAIN SEALING FITTINGS OFFERS OPTIONS FOR INSTALLING IN VERTICAL POSITIONS FOR HARSH HAZARDOUS LOCATIONS WHERE THERE IS A PROBABILITY THAT LIQUID OR OTHER CONDENSED VAPOR MAY BE TRAPPED WITHIN ENCLOSURES OR IN THE CONDUIT RACEWAY SYSTEM. EYD SERIES CAN MAKE ANY SEALING NEEDS SIGNIFICANT BY OFFERING A MINIMIZED TURN RADIUS FOR MAXIMIZED INSTALLATIONS. OPTIONS ARE AVAILABLE IN COPPER-FREE ALUMINUM AND DURALOY IRON WITH SUPERIOR ELECTRO-STATICALLY APPLIED POWDER COATING FOR THE BEST CORROSIVE RESISTANCE.
Category: Steel Sealing Bodies
Full Technical Description: Drain, Hub Type; Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron Material; Female Threaded, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/2 Inch Trade Size; Vertical Mounting Position; 3-7/16 Inch Turning Radius; Overall Dimension 4-5/8 Inch W X 5-1/8 Inch H; EYD Model
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
