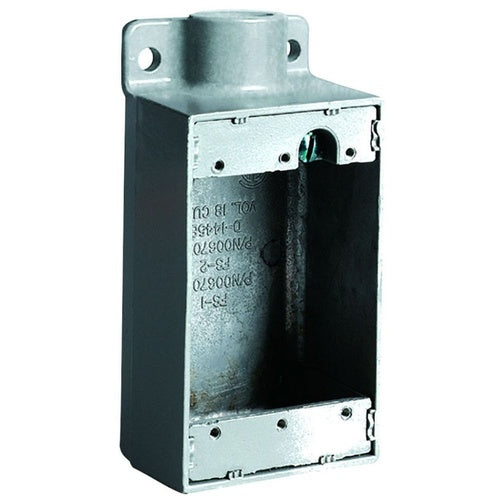

Killark FS-1 1/2" Alm Shallow Device Box Type FS

Overview

Killark FS-1 1/2" Alm Shallow Device Box Type FS

Product Specifications

• UPC: 78393619001
• Number Of Gangs: 1
• Number Of Hubs: 1
• Hub Location: (1) Top
• Hub Size: 1/2 Inch
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Lug
• Approval: UL 514A, CSA C22.2
• Additional Information: Applicable Standard Federal Specification W-C-586D, NEMA FB-1
• Catalog Number: FS-1
• Brand Name: Killark
• Model: FS
• Type: Dead End
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Catalog Description: "ALUMINUM, SHALLOW DEAD END DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Dead End Type; Electrostatically Applied Powder Coated Copper-Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 1/2 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A, CSA C22.2 Approval; 18 Cubic Inch Capacity; Lug Mounting Hardware; (1) Top Hub Location; FS Configuration Type; Applicable Standard Federal Specification W-C-586D, NEMA FB-1; FS Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936190013
• SKU Name: klrk fs1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
