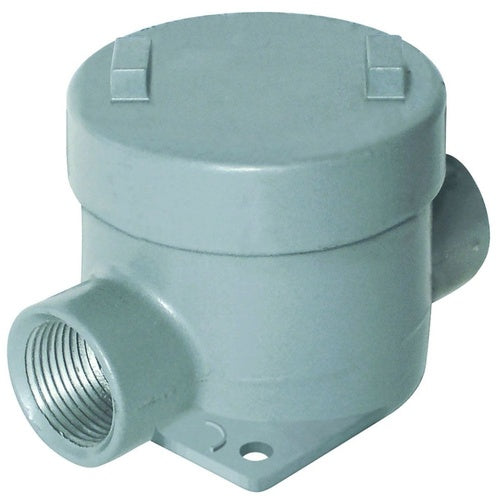

Killark GEBC-3 1" C-Type Outlet Body

Overview

Killark GEBC-3 1" C-Type Outlet Body

Product Specifications

• UPC: 78393611471
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3-1/2 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Mounting: Lug
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Grounding Screw
• Catalog Number: GEBC-3
• Model: GEB
• Style: C
• Hub Size: 1 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: Feed Through, (2) Side
• Capacity: 29 Cu Inch
• Catalog Description: 1" GEB OUTLET BODY, C TYPE, ALUMINUM
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 1 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 Group Iia Iib Iic, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X Enclosure; Internally Threaded Cover Type; 29 Cu Inch Capacity; C Style; Feed Through, (2) Side Hub Location; External Hub Type; 3-1/2 Inch Cover Opening Diameter; Includes Grounding Screw; GEB Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936114712
• SKU Name: klrk gebc3

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Line Drawing
