Additional Information: Overall Dimension 6.25 Inch Length x 6 Inch Width x 4.25 Inch Height; Includes Green Grounding Screw; Application Wet Location; Applicable Standard Federal Specification WC-586D, Mil F28675
Catalog Number: GECXT-2
Model: GEC
Style: X
Hub Size: 3/4 Inch
Hub Type: External
Number Of Hubs: 4
Hub Location: (4) Side
Capacity: 19 Cubic Inch

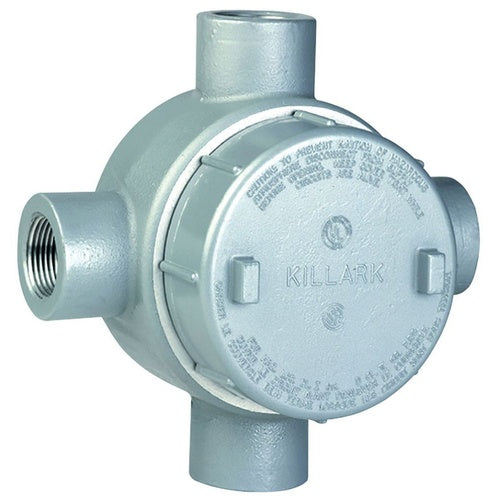

Catalog Description: " GEC OUTLET BODY X TYPE
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Electrostatically Applied Powder Epoxy Painted Copper-Free Aluminum Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL 886/1203, CSA C22.2 Approval; Class I Division 1 and 2 Group B C D, Class I, Zone 1, Group Iib, Iia, Class II Division 1 and 2 Group E F G, Class III Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; Overall Dimension 6.25 Inch Length X 6 Inch Width X 4.25 Inch Height; Includes Green Grounding Screw; Application Wet Location; Applicable Standard Federal Specification WC-586D, mil F28675; GEC Model
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
