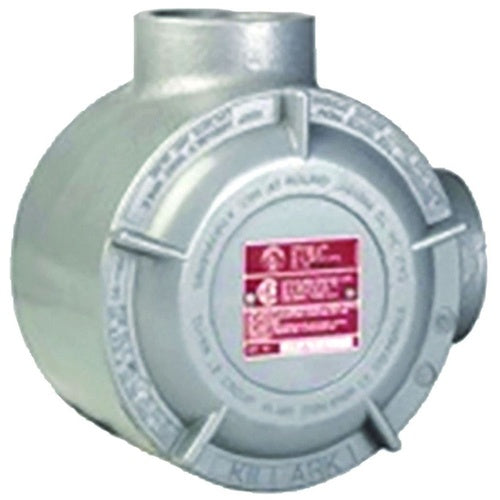

Killark GEJLT-6 2" Explosion-Proof Conduit Body

Overview

Killark GEJLT-6 2" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621106
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 4-7/8 Inch
• Enclosure: Class I Group C D, Class I Zone 1 Group IIA, Class II, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Grounding Screw
• Catalog Number: GEJLT-6
• Model: GEJ
• Style: L
• Hub Size: 2 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (2) Side
• Capacity: 75 Cu Inch
• Catalog Description: 2" GEJ OUTLET BODY L-TYPE, ALUMINUM
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 2 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Group C D, Class I Zone 1 Group Iia, Class II, Class III Enclosure; Internally Threaded Cover Type; 75 Cu Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; 4-7/8 Inch Cover Opening Diameter; Includes Grounding Screw; GEJ Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936211060
• SKU Name: klrk gejlt6

Resources

• Manufacturer Spec Sheet
• Technical Drawing
