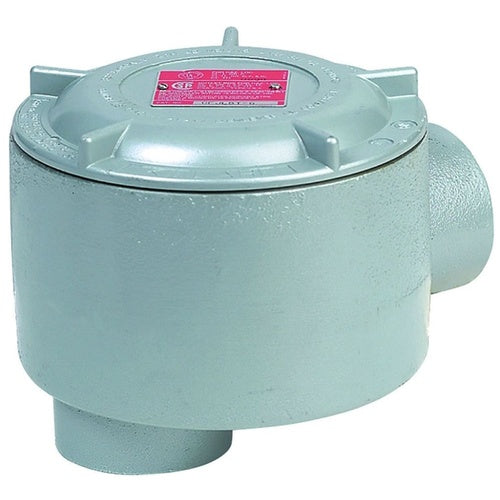

Killark GESLBT-3 1" Explosion-Proof Conduit Body

Overview

Killark GESLBT-3 1" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621146
• Capacity: 42 CU INCH
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 3-9/16 INCH
• Enclosure: CLASS I GROUP D, CLASS I ZONE 1 GROUP IIA, CLASS II, CLASS III
• Material: ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM
• Approval: UL 886, CSA C22.2
• Additional Information: WITH GROUND SCREW
• Catalog Number: GESLBT-3
• Brand Name: HUBBELL[R]
• Model: GES
• Style: LB
• Hub Size: 1 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 2
• Hub Location: (1) SIDE, (1) DOWN
• Catalog Description: 1" GES OUTLET BODY LB TYPE, ALUMINUM
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 1 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Group D, Class I Zone 1 Group Iia, Class II, Class III Enclosure; Externally Threaded Cover Type; 42 Cu Inch Capacity; lb Style; (1) Side, (1) Down Hub Location; External Hub Type; 3-9/16 Inch Cover Opening Diameter; HUBBELL[R] Brand; With Ground Screw; GES Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936211466
• SKU Name: klrk geslbt3

Resources

• Manufacturer Spec Sheet
• Technical Drawing
