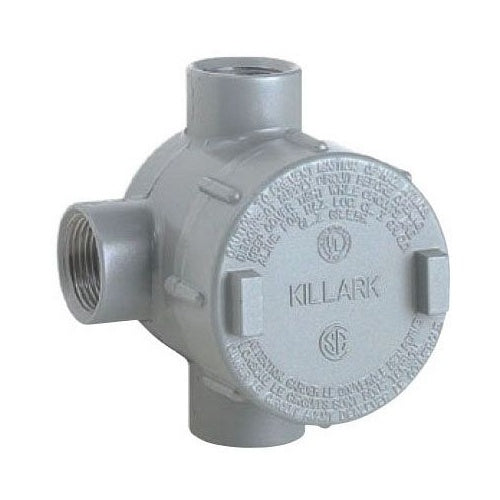

Killark GESTT-4 1-1/4" Explosion-Proof Conduit Body

Overview

Killark GESTT-4 1-1/4" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621034
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3-9/16 Inch
• Enclosure: Class I Group D, Class I Zone 1 Group IIA, Class II, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Grounding Screw
• Catalog Number: GESTT-4
• Model: GES
• Style: T
• Hub Size: 1-1/4 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: (3) Side
• Capacity: 42 Cu Inch
• Catalog Description: 1" GES OUTLET BODY T-TYPE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 1-1/4 Inch Hub Size; 3 Hub(S); UL 886, CSA C22.2 Approval; Class I Group D, Class I Zone 1 Group Iia, Class II, Class III Enclosure; Internally Threaded Cover Type; 42 Cu Inch Capacity; T Style; (3) Side Hub Location; External Hub Type; 3-9/16 Inch Cover Opening Diameter; Includes Grounding Screw; GES Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210346
• SKU Name: klrk gestt4

Resources

• Manufacturer Spec Sheet
• Technical Drawing
