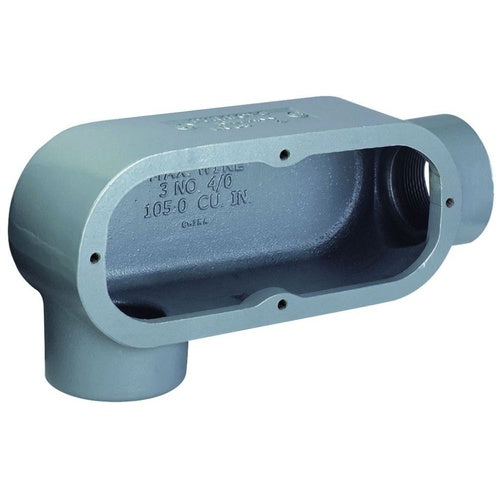

Killark LR58 Conduit Body

Overview

Killark LR58 Conduit Body

Product Specifications

• UPC: 78393648127
• Hub Size: 1-1/2 Inch
• Size: 9-1/8 Inch L x 2-25/32 Inch W x 4-1/32 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LR58
• Brand Name: DURALOY[R]
• Model: 8
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 1-1/2" LR HUB, IRON DURALOY 8 CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 9-1/8 Inch L X 2-25/32 Inch W X 4-1/32 Inch H Size; Rigid Conduit/Imc Used on; 1-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 8 Form Type; Right Side Access Opening; DURALOY[R]8 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 8 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936481272
• SKU Name: klrk lr58
