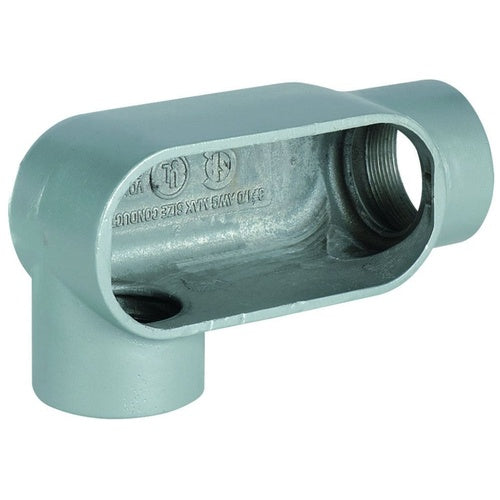

Killark LR67 2" Hub LR-Type Conduit Body

Overview

Killark LR67 2" Hub LR-Type Conduit Body

Product Specifications

• UPC: 78393601125
• Hub Size: 2 Inch
• Size: 8-1/4 Inch L x 3-1/8 Inch W x 4-1/4 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LR67
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Stainless Steel
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 2" LR HUB, IRON DURALOY 7 CONDUIT BODY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 8-1/4 Inch L X 3-1/8 Inch W X 4-1/4 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Right Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011257
• SKU Name: klrk lr67
