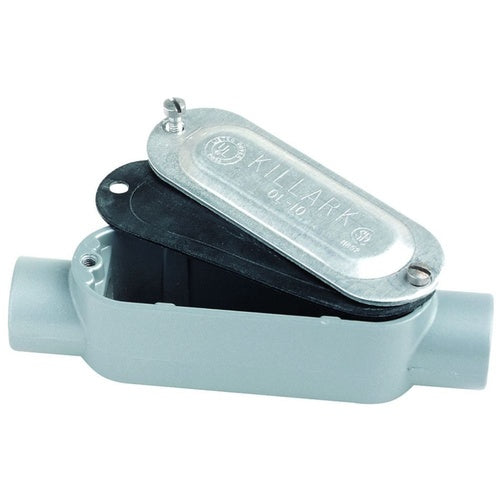

Killark OC-3CG 1" Aluminum C-Type Conduit Body

Overview

Killark OC-3CG 1" Aluminum C-Type Conduit Body

Product Specifications

• UPC: 78393604924
• Hub Size: 1 Inch
• Size: 7-1/8 Inch L x 1-7/8 Inch W x 2 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket
• Catalog Number: OC-3CG
• Brand Name: DURALOY[R], K-PAK[R]
• Model: O/5
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES ALUMINUM CONDUIT BODY WITH COVER AND GASKET- C TYPE - HUB SIZE 1" - VOLUME 12.0 CU IN
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 7-1/8 Inch L X 1-7/8 Inch W X 2 Inch H Size; Rigid Conduit/Imc Used on; 1 Inch Hub Size; Threaded (Imc/Rigid) Installation; C Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Straight Hub Location; Form 5 Form Type; Straight Side Access Opening; DURALOY[R]5, K-PAK[R] Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; Includes Cover, Gasket; O/5 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936049243
• SKU Name: klrk oc3cg

Resources

• Manufacturer Spec Sheet
