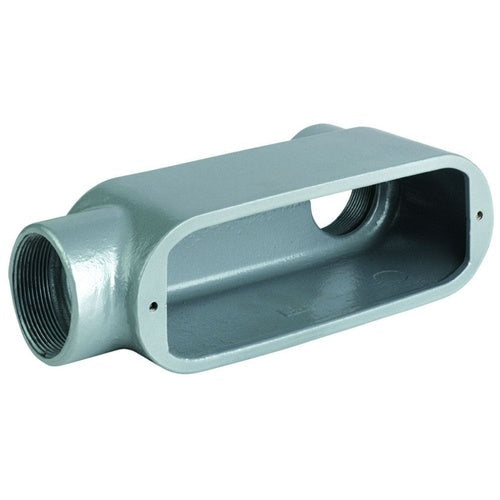

Killark OLB-0 4" Aluminum LB-Type Conduit Body

Overview

Killark OLB-0 4" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78393649034
• Hub Size: 4 Inch
• Size: 16-7/8 Inch L x 5-1/2 Inch W x 7-13/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OLB-0
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: 4" LB HUB, ALUMINUM O SERIES CONDUIT BODY,
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 16-7/8 Inch L X 5-1/2 Inch W X 7-13/16 Inch H Size; Rigid Conduit/Imc Used on; 4 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Back Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936490342
• SKU Name: klrk olb0
