Size: 16-7/8 Inch L x 5-1/2 Inch W x 7-13/16 Inch H
Installation: Threaded (IMC/Rigid)
Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron
Form Type: Form 5
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
Catalog Number: OLB-0M
Brand Name: DURALOY[R]
Model: O/5
Access Opening: Back
Configuration: LB
Cover Type: Stamped and Cast Stainless Steel Screw-On
Hub Location: 90 Deg
Number Of Hubs: 2

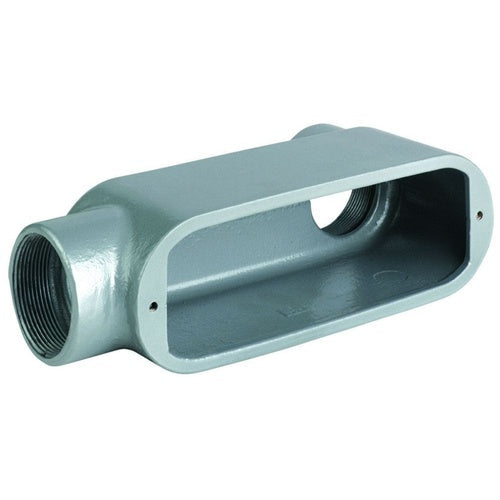

Catalog Description: 4" LB HUB, IRON O SERIES CONDUIT BODY
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Malleable Iron Material; 16-7/8 Inch L X 5-1/2 Inch W X 7-13/16 Inch H Size; Rigid Conduit/Imc Used on; 4 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Back Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
