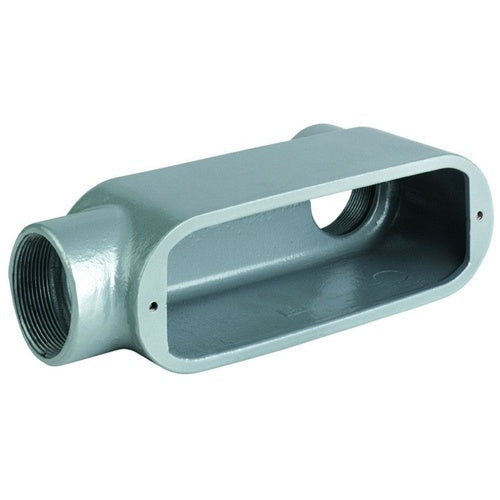

Killark OLB-1 1/2" Aluminum LB-Type Conduit Body

Overview

Killark OLB-1 1/2" Aluminum LB-Type Conduit Body

Product Specifications

• UPC: 78393649025
• Hub Size: 1/2 Inch
• Size: 4-17/32 Inch Length x 1-3/8 Inch Width x 2-9/32 Inch Height
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Color Gray; Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OLB-1
• Brand Name: Killark
• Model: O
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - LB TYPE - HUB SIZE1/2 INCH - VOLUME 4.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Powder Epoxy Painted Copper Free Aluminum Material; 4-17/32 Inch Length X 1-3/8 Inch Width X 2-9/32 Inch Height Size; Rigid/Imc Conduit Used on; 1/2 Inch Hub Size; Stainless Steel Screw Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Cast Cover Type; Back Access Opening; DURALOY[R]5 Brand; Color Gray; O Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936490250
• SKU Name: klrk olb1

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
