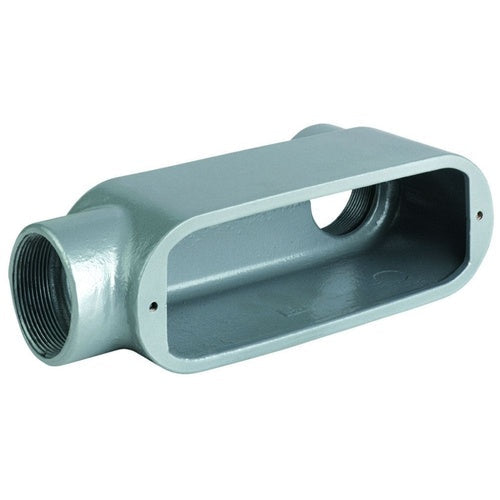

Killark OLB-4 Aluminum LB 1-1/4" Unilet

Overview

Killark OLB-4 Aluminum LB 1-1/4" Unilet

Product Specifications

• UPC: 78393649028
• Hub Size: 1-1/4 Inch
• Size: 7-1/2 Inch L x 2-5/8 Inch W x 3-3/16 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OLB-4
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Back
• Configuration: LB
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - LB TYPE - HUB SIZE1-1/4 INCH - VOLUME 28.8 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 7-1/2 Inch L X 2-5/8 Inch W X 3-3/16 Inch H Size; Rigid Conduit/Imc Used on; 1-1/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Back Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936490281
• SKU Name: klrk olb4

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
