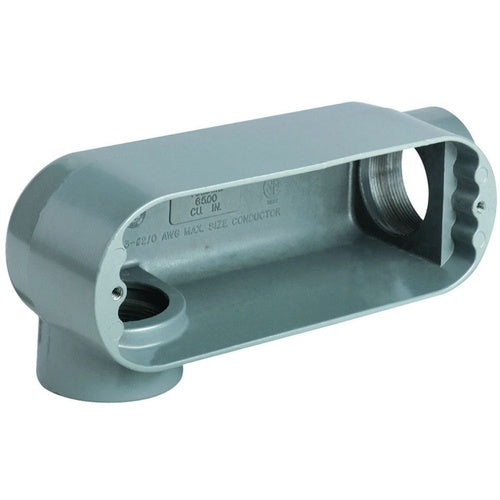

Killark OLR-1 1/2" Aluminum LR-Type Conduit Body

Overview

Killark OLR-1 1/2" Aluminum LR-Type Conduit Body

Product Specifications

• UPC: 78393649051
• Hub Size: 1/2 Inch
• Size: 4-5/8 Inch Length x 2 Inch Width x 1-3/8 Inch Height
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Color Gray; Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OLR-1
• Brand Name: Killark
• Model: O
• Access Opening: Right Side
• Configuration: LR
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: O SERIES/DURALOY 5 SERIES - ALUMINUM CONDUIT BODY - LR TYPE - HUB SIZE1/2 INCH - VOLUME 4.0 CUBIC INCHES
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper-Free Aluminum Material; 4-5/8 Inch Length X 2 Inch Width X 1-3/8 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Degree Hub Location; Form 5 Form Type; Right Side Access Opening; DURALOY[R]5 Brand; Color Gray; Applicable Standard Federal Specification W-C-586D/A-A 50563; O Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936490519
• SKU Name: klrk olr1

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
