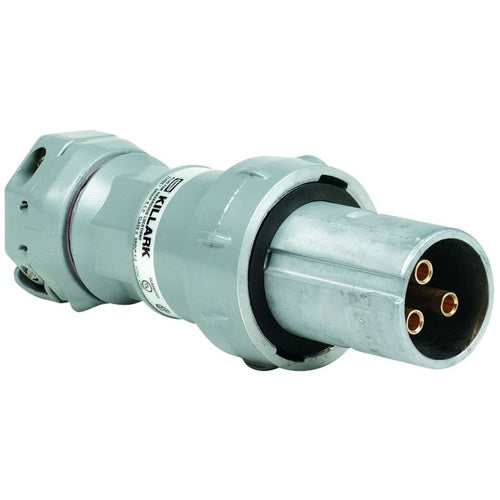

Killark VP10487 4P 3W 100A Plug

Overview

Killark VP10487 4P 3W 100A Plug

Product Specifications

• UPC: 78393683476
• Maximum Cable Outer Diameter: 1.68 Inch
• Material: Electrostatically Applied Epoxy/Polyester Copper Free Aluminum
• Approval: UL, CSA
• Catalog Number: VP10487
• Constructional Feature: Hazardous Location
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 100 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Grounding Style: 2
• Minimum Cable Outer Diameter: 0.88 Inch
• Catalog Description: 100A 3 POLE 4 WIRE PLUG ASSEMBLY
• Category: Pin & Sleeve Devices
• Full Technical Description: Electrostatically Applied Epoxy/Polyester Copper Free Aluminum Material; 0.88 Inch min. Cable Outer Diameter; 1.68 Inch Max. Cable Outer Diameter; 4 Wire(S); UL, CSA Approval; 600 Vac/250 VDC Voltage Rating; 100 Ampere Current Rating; 3 Pole(S); Hazardous Location; 2 Grounding Style; VERSAMATE[R] Brand
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783936834764
• SKU Name: klrk vp10487

Resources

• Manufacturer Spec Sheet
