Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 IIA IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/4X/12/7B/7C/7D/9F/9G
Approval: UL, CSA
Catalog Number: VP3475
Brand Name: VERSAMATE[R]
Model: VP
Voltage Rating: 600 VAC, 250 VDC
Current Rating: 30 Ampere
Number Of Poles: 4
Number Of Wires: 4
Minimum Cable Outer Diameter: 0.55 Inch

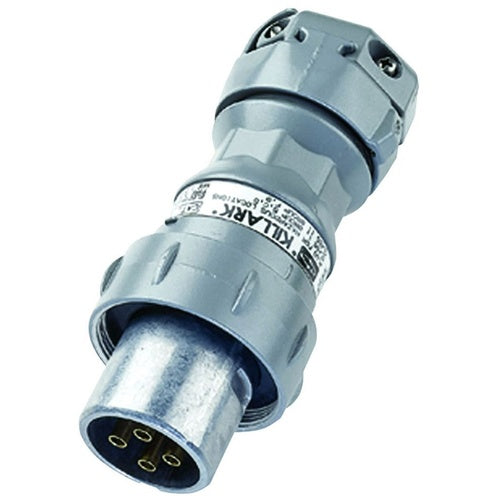

Catalog Description: 30A 4 POLE 4 WIRE PLUG ASSEMBLY
Category: Lighting Accessories
Full Technical Description: Electrostatically Applied Polyester/Epoxy Painted Copper Free Aluminum Material; 0.55 Inch min. Cable Outer Diameter; 1.2 Inch Max. Cable Outer Diameter; 4 Wire(S); UL, CSA Approval; 600 VAC, 250 VDC Voltage Rating; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Iia IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 3/4/4X/12/7B/7C/7D/9F/9G Enclosure; 30 Ampere Current Rating; 4 Pole(S); VERSAMATE[R] Brand; VP Model
Made In Usa: Yes
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
