Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2, IIA IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 7B/7C/7D/9F/9G
Approval: UL, CSA
Additional Information: Application Indoor/Outdoor; Wire Range 10 to 6 AWG (Regular), 10 to 8 AWG (Extra-Flex)
Catalog Number: VP6485
Brand Name: VERSAMATE[R]
Model: VP
Voltage Rating: 600 VAC/250 VDC at 50 to 400 Hz
Current Rating: 60 Ampere
Number Of Poles: 4
Number Of Wires: 3
Minimum Cable Outer Diameter: 0.65 Inch

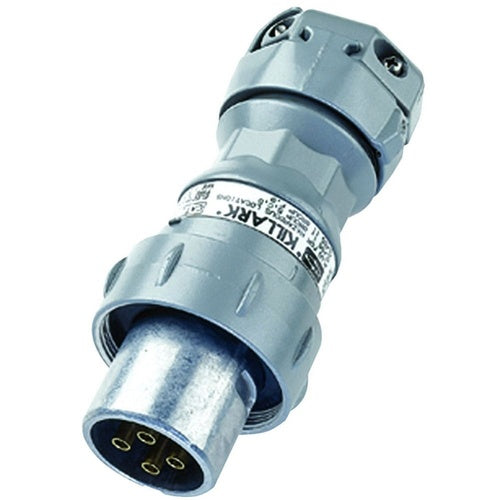

Catalog Description: 60A 3 POLE 4 WIRE PLUG ASSEMBLY
Category: Pin & Sleeve Devices
Full Technical Description: Electrostatically Applied Polyester/Epoxy Painted Copper Free Aluminum Material; 0.65 Inch min. Cable Outer Diameter; 1.5 Inch Max. Cable Outer Diameter; 3 Wire(S); UL, CSA Approval; 600 Vac/250 VDC at 50 to 400 Hz Voltage Rating; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2, Iia IIB+H2, Class II Div 1 and 2 Group F G, Class III, NEMA 7B/7C/7D/9F/9G Enclosure; 60 Ampere Current Rating; 4 Pole(S); VERSAMATE[R] Brand; Application Indoor/Outdoor; Wire Range 10 to 6 AWG (Regular), 10 to 8 AWG (Extra-Flex); VP Model
Made In Usa: Yes
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
