Application: VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous, or corrosive areas in such industrial applications as: pulp and paper mills; electrical power plants; petrochemical plants; wastewater treatment; marine, docks, ports; construction sites; breweries; refineries; chemical plants; grain facilities; textile manufacturing; and food processing facilities.
Special Features: Exclusive patented Breech-Lock cap serves as either flip lid or screw cover. Receptacle is NEMA 3R with lid snapped shut or NEMA 4X with lid turned shut or when VERSAMATE plug is inserted and locking ring tightened. Patented notch in cap arm holds cap open for easy plug insertion or maintenance. Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact. VERSAMATE receptacles use the same Increased Safety terminals and funnel design as VERSAMATE plugs.
Standard: UL, CSA
Sub Brand: VERSAMATE
Type: Aluminum NEMA 4X metallic receptacle
Voltage Rating: 600//250 VAC//VDC
Wire Size: Regular stranding: #4-#2; extra flex: #4-#2
Brand Name: KILLARK
Color: Gray
Environmental Conditions: Wet and hazardous locations
Material: Copper-Free Aluminum
Nema Rating: NEMA 3, 4, 4X
Number Of Poles: 2
Number Of Wires: 2
Size: 4-9/16 H x 4-1/4 W x 5-3/8 D

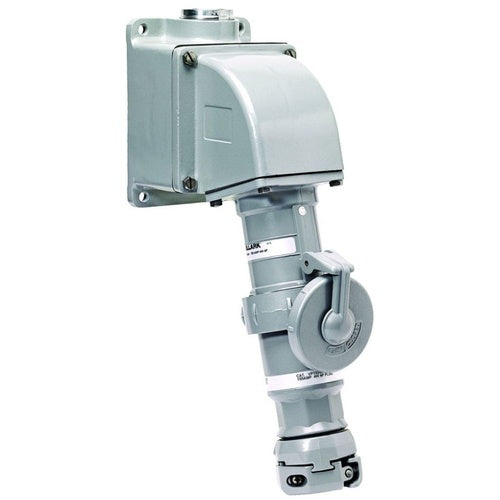

Catalog Description: 100A 2 POLE 2 WIRE RECEPTACLE ASSEMBY
Category: Pin & Sleeve Devices
Made In Usa: Yes
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
