Size: 9-7/16 Inch L x 3-1/8 Inch W x 5-7/16 Inch H
Installation: Threaded (IMC/Rigid)
Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
Form Type: Form 7
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
Catalog Number: X67
Brand Name: DURALOY[R]
Model: 7
Access Opening: Side
Configuration: X
Cover Type: Stainless Steel
Hub Location: Cross
Number Of Hubs: 4

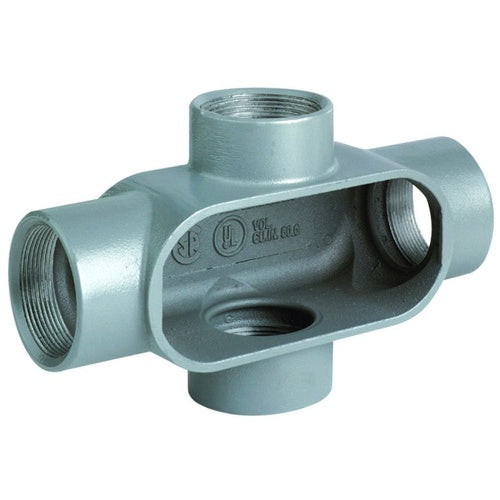

Catalog Description: 2" X HUB, IRON DURALOY 7 CONDUIT BODY,
Category: Rigid Conduit Fittings - Steel
Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 9-7/16 Inch L X 3-1/8 Inch W X 5-7/16 Inch H Size; Rigid Conduit/Imc Used on; 2 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Cross Hub Location; Form 7 Form Type; Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
Manufacturer Brand: Killark Electric Manufacturing Co.
