Additional Information: Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1/2 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C
Catalog Number: 16262-HGG
Brand Name: Decora Plus[TM]
Model: 16262
Type: Duplex, Decorator
Constructional Feature: Impact Resistant
Configuration: 5-15R
Voltage Rating: 125 V
Current Rating: 15 Ampere

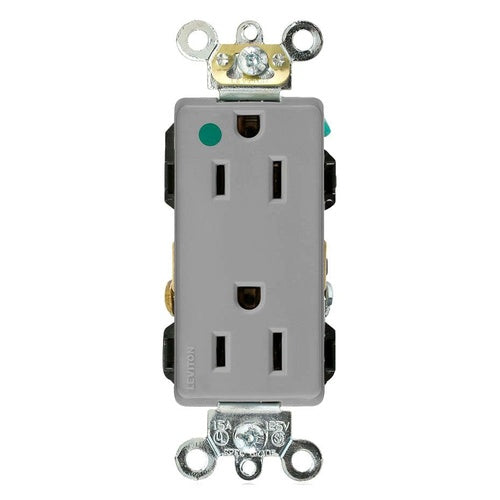

Catalog Description: 15 AMP, 125 VOLT, DECORA PLUS DUPLEX RECEPTACLE, HOSPITAL GRADE, SELF GROUNDING, STRAIGHT BLADE, GRAY
Category: Receptacles & Surge Protectors
Full Technical Description: Duplex, Decorator Type; Nylon (Body/Face), Zinc Plated Steel (Yoke) Material; Gray Color; 5-15R Configuration; 3 Wire(S); Hospital, Extra Heavy Duty Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Self Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Decora PLUS[TM] Brand; Applicable Standard ANSI C73, NEMA Wd-6; Power Rating 1/2 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C; 16262 Model
