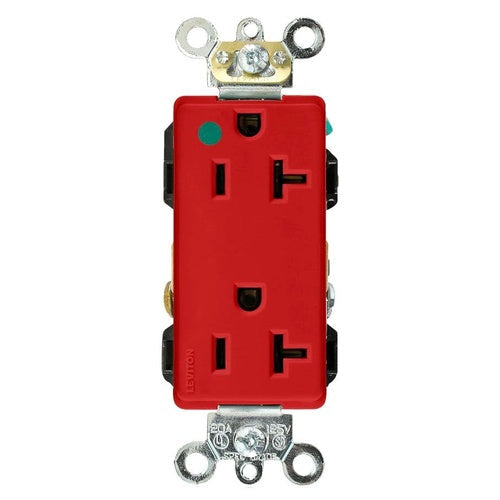

Leviton 16362-HGR Red Duplex Receptacle-N5-20R

Overview

Leviton 16362-HGR Red Duplex Receptacle-N5-20R

Product Specifications

• UPC: 07847781879
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Self Grounding
• Material: Nylon (Body/Face), Zinc Plated Steel (Yoke)
• Color: Red
• Wiring: Back, Side
• Grade: Hospital, Extra Heavy Duty
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C
• Catalog Number: 16362-HGR
• Brand Name: Decora Plus[TM]
• Model: 16362
• Type: Duplex, Decorator
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Catalog Description: DECORA PLUS DUPLEX RECEPTACLE OUTLET, EXTRA HEAVY-DUTY HOSPITAL GRADE, SMOOTH FACE,20 AMP, 125 VOLT, BACK OR SIDE WIRE, NEMA 5-20R, 2-POLE, 3-WIRE, SELF-GROUNDING - RED
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex, Decorator Type; Nylon (Body/Face), Zinc Plated Steel (Yoke) Material; Red Color; 5-20R Configuration; 3 Wire(S); Hospital, Extra Heavy Duty Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Self Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Decora PLUS[TM] Brand; Applicable Standard ANSI C73, NEMA Wd-6; Power Rating 1 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C; 16362 Model
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477818794
• SKU Name: lev 16362hgr
