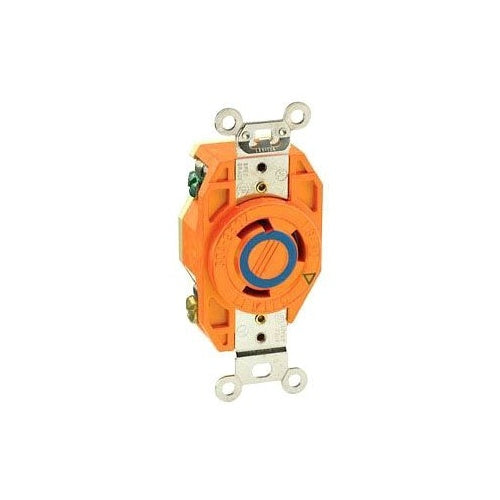

Leviton 2620-IG Isolated Ground Flush Receptacle

Overview

Leviton 2620-IG Isolated Ground Flush Receptacle

Product Specifications

• UPC: 07847780950
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.56 Inch
• Material: Valox 357 (Body), Valox (Face/Base)
• Color: Orange
• Wiring: Back, Side
• Mounting: Flush
• Approval: UL 498, CSA C22.2, NOM 057, FS WC596
• Additional Information: Wire Size 14 to 8 AWG; Temperature Rating -40 to 60 Deg C; Application Industrial
• Catalog Number: 2620-IG
• Brand Name: V-O-Max[R]
• Type: Single Locking
• Constructional Feature: Abuse Resistant
• Configuration: L6-30R
• Voltage Rating: 250 V
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Catalog Description: 30 AMP, 250 VOLT, FLUSH MOUNTING LOCKING RECEPTACLE, INDUSTRIAL GRADE, ISOLATED GROUND, V-0-MAX, ORANGE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Valox 357 (Body), Valox (Face/Base) Material; Orange Color; L6-30R Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057, FS WC596 Approval; 250 V Voltage Rating; Flush Mounting; 30 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Abuse Resistant; Back, Side Wiring; 1.56 Inch Face Outer Diameter; Black & White [R], V-O-Max [R] Brand; Wire Size 14 to 8 AWG; Temperature Rating -40 to 60 Deg C; Application Industrial
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477809501
• SKU Name: lev 2620ig
