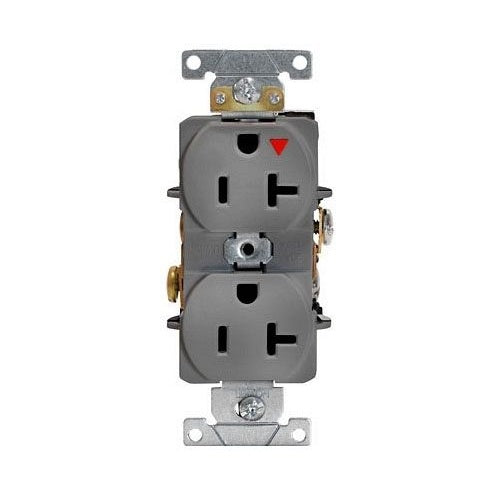

Leviton 5362-IGG Isolated Ground Gray Duplex Receptacle-N5 20R

Overview

Leviton 5362-IGG Isolated Ground Gray Duplex Receptacle-N5 20R

Product Specifications

• UPC: 07847705328
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Material: Thermoplastic Nylon
• Color: Gray
• Wiring: Back, Side
• Grade: Industrial, Specification, Heavy Duty
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Contact Material Brass; Strap Material Galvanized Steel; Temperature Rating -40 to 60 Deg C
• Catalog Number: 5362-IGG
• Model: 5362
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: 20-AMP, 125 VOLT, INDUSTRIAL SERIES HEAVY DUTY SPECIFICATION GRADE, DUPLEX RECEPTACLE, STRAIGHT BLADE, ISOLATED GROUND, GRAY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Thermoplastic Nylon Material; Gray Color; 5-20R Configuration; 3 Wire(S); Industrial, Specification, Heavy Duty Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Applicable Standard ANSI C73, NEMA Wd-6; Power Rating 1 HP; Contact Material Brass; Strap Material Galvanized Steel; Temperature Rating -40 to 60 Deg C; 5362 Model
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477053287
• SKU Name: lev 5362igg
