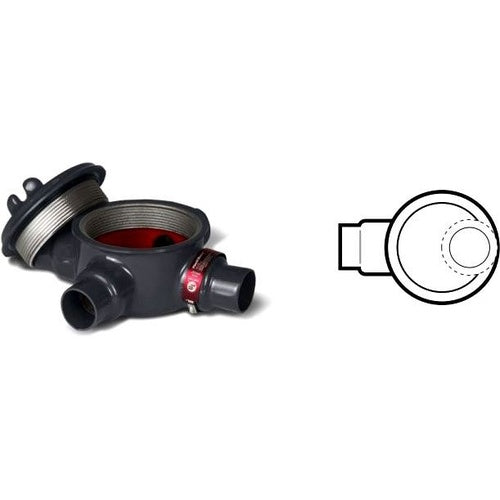

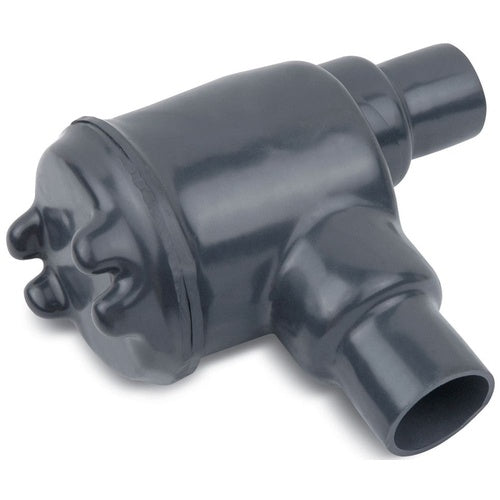

Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAB TYPE - L SHAPE, PIPE SIZE 1/2 INCH/16 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 2.00 INCH/50.80 MILLIMETERS, GRAY
Category: Miscellaneous Conduit Bodies
Full Technical Description: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover) Material; Round Shape; 1/2 Inch Hub Size; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G, Enclosure; Externally Threaded Cover Type; 6.9 Cu Inch Capacity; lb Style; (1) Side, (1) Down Hub Location; External Hub Type; 2 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Color Dark Gray; GUAB Model
