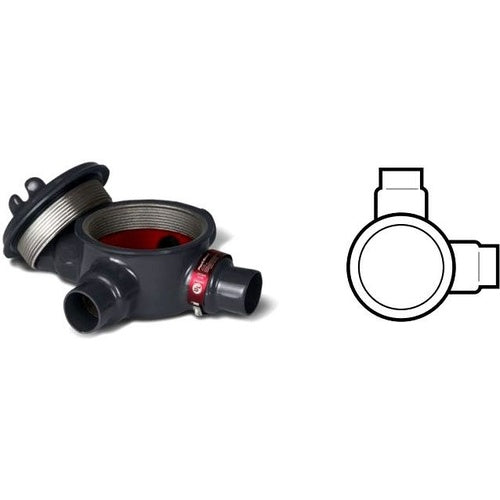

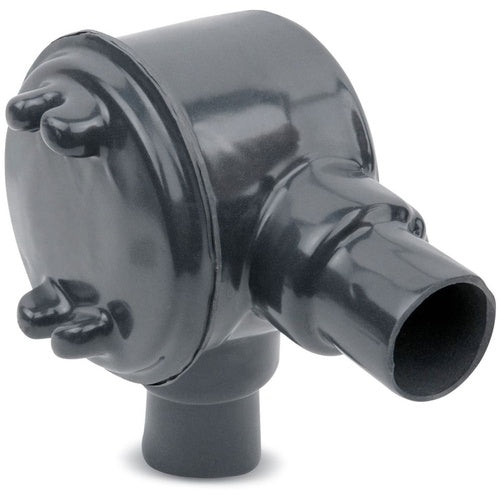

Ocal GUAL24-G Conduit Box L-Shape 3/4" Opening 2" Gray

Overview

Ocal GUAL24-G Conduit Box L-Shape 3/4" Opening 2" Gray

Product Specifications

• UPC: 70450838515
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 2 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover)
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: GUAL24-G
• Model: GUAL
• Style: L
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (2) Side
• Capacity: 5.3 Cu Inch
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAL TYPE - L SHAPE, PIPE SIZE 3/4 INCH/21 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 2.00 INCH/50.80 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover) Material; Round Shape; 3/4 Inch Hub Size; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; 5.3 Cu Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; 2 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Color Dark Gray; GUAL Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508385156
• SKU Name: ocal gual24g
