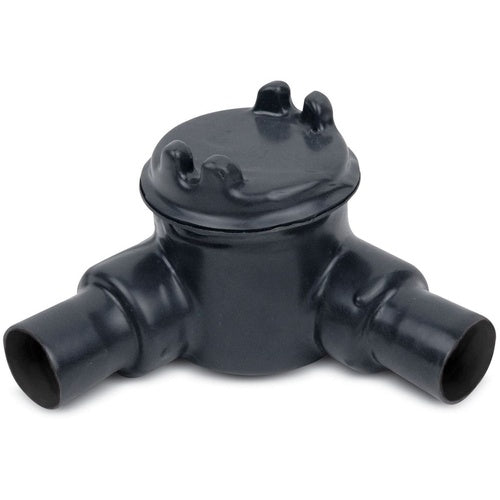

Ocal GUAN26-G Conduit Box N-Type 3/4" Opening 3" Gray

Overview

Ocal GUAN26-G Conduit Box N-Type 3/4" Opening 3" Gray

Product Specifications

• UPC: 70450838567
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3 Inch
• Enclosure: Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G,
• Material: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover)
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: GUAN26-G
• Model: GUAN
• Style: L
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (2) Side
• Capacity: 14 Cu Inch
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAN TYPE - L SHAPE, PIPE SIZE 3/4 INCH/21 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover) Material; Round Shape; 3/4 Inch Hub Size; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Groups C D, Class II Div 1 Groups E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G, Enclosure; Externally Threaded Cover Type; 14 Cu Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; 3 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Color Dark Gray; GUAN Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508385675
• SKU Name: ocal guan26g
