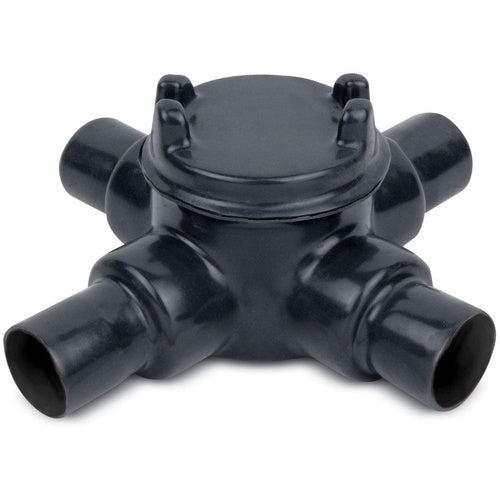

Ocal GUAX26-G Conduit Box X-Shape 3/4" Opening 3" Gray

Overview

Ocal GUAX26-G Conduit Box X-Shape 3/4" Opening 3" Gray

Product Specifications

• UPC: 70450838639
• Capacity: 13.3 Cubic Inch
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover)
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: GUAX26-G
• Brand Name: Ocal
• Model: GUAX
• Style: X
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Catalog Description: PVC DOUBLE-COATED CONDUIT OUTLET BOX FOR HAZARDOUS LOCATIONS, GUAX TYPE - X SHAPE, PIPE SIZE 3/4 INCH/21 METRIC, BOX IS DUCTILE IRON WITH ZINC PLATING, COVER IS DIE CAST ALUMINUM, COVER OPENING 3.00 INCH/76.20 MILLIMETERS, GRAY
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electro Plated PVC Coated Ductile Iron (Body), Die-Cast Aluminum (Cover) Material; Round Shape; 3/4 Inch Hub Size; 4 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; 13.3 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3 Inch Cover Opening Diameter; OCAL-BLUE[R] Brand; Color Dark Gray; GUAX Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121331
• UPC 12 Digit: 704508386399
• SKU Name: ocal guax26g
