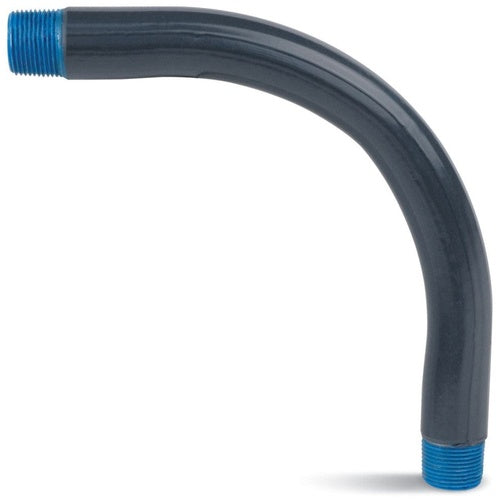

Ocal LRELL5X36-G PVC Coated Elbow 90-Deg 5" R36" Steel Gray

Overview

Ocal LRELL5X36-G PVC Coated Elbow 90-Deg 5" R36" Steel Gray

Product Specifications

• UPC: 70450839638
• Finish: 40 Mil PVC Coated Hot-Dip Galvanized
• Standard Package: 1
• Applicable Standard: ANSI C80.1
• Approval: UL, CSA
• Additional Information: Color Dark Gray; Thread Protector Color Blue
• Catalog Number: LRELL5X36-G
• Brand Name: OCAL-BLUE[R]
• Type: Large Radius
• Trade Size: 5 Inch
• Bend Angle: 90 Deg
• Bend Radius: 36 Inch
• End Type: External Threaded
• Material: Steel
• Catalog Description: LARGE RADIUS ELBOW, 40 MIL PVC COATED, PIPE SIZE 5 INCH/129 METRIC, ANGLE 90 DEGREES, RADIUS 36 INCH/914.40 MILLIMETERS, OFFSET 3 FEET 11 INCH/1,193.80 MILLIMETERS, STRAIGHT END 11 INCH/279.40 MILLIMETERS, UNBENT LENGTH 78 INCH/1,981.20 MILLIMETERS, HOT-DIP GALVANIZED RIGID STEEL, GRAY
• Category: Elbows-Couplings-Nipples - Steel
• Full Technical Description: Large Radius Type; Steel Material; 40 mil PVC Coated Hot-Dip Galvanized Finish; UL, CSA Approval; ANSI C80.1 Applicable Standard; 1 Standard Package; 5 Inch Trade Size; External Threaded End Type; 90 Deg Bend Angle; 36 Inch Bend Radius; OCAL-BLUE[R] Brand; Color Dark Gray; Thread Protector Color Blue
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid Conduit Bend
• Unspsc: 39131717
• UPC 12 Digit: 704508396381
• SKU Name: ocal lrell5x36g

Resources

• Manufacturer Spec Sheet
